Voisus Data Sheet

ASTi's Voisus platform delivers high-fidelity communications and audio over IP networks to a variety of user interfaces. The platform consists of a Voisus server running Voisus server software. Voisus client software GUIs can be downloaded to computers and tablets through the Voisus web interface.

Software Overview & Features

Voisus software consists of server and client software components that provide high-level features, such as the following:

• Secure, web-based management (https)
• Ethernet network-based architecture
• Secure Shell (SSH)
• Customer-programable interface:
  • HAPI: A HTTP Application Program Interface allows developers to create their own Voisus server web interfaces for creating exercise scenarios and managing client operators.
  • SAPI: A Streaming Application Program Interface allows developers to create their own apps that stream data from the Voisus server, such as a radio monitor displaying operator receive/transmit states.
  • VRCC Library: The Voisus Remote Control Client (VRCC) library provides an interface for developers to build custom communications client GUIs for computers and tablets.
• DIS interoperability

Go to the Voisus Quick Start Guide for additional features.

Voisus Server

Operating System	RHEL 8.x1
Software Version	8.x.y (e.g., 8.1.0)1
Security Software Version	3.x.y (e.g., 3.0.2)1
Information Assurance	Optional package based on latest STIG requirements

Voisus Client

The Voisus Client is available for download from the Voisus web interface.

Operating Systems	RHEL 9, RHEL 8, RHEL 7, Windows 11, Windows 10
Software Version	8.x.y (e.g. 8.3.0)1

¹ Specific version based on customer deliverables.

Hardware Overview

The Voisus server is a dedicated audio-processing platform, providing optimized performance and reliability in communications exercises. Contact ASTi for other audio-processing options, such as virtual machines and cloud-based servers.

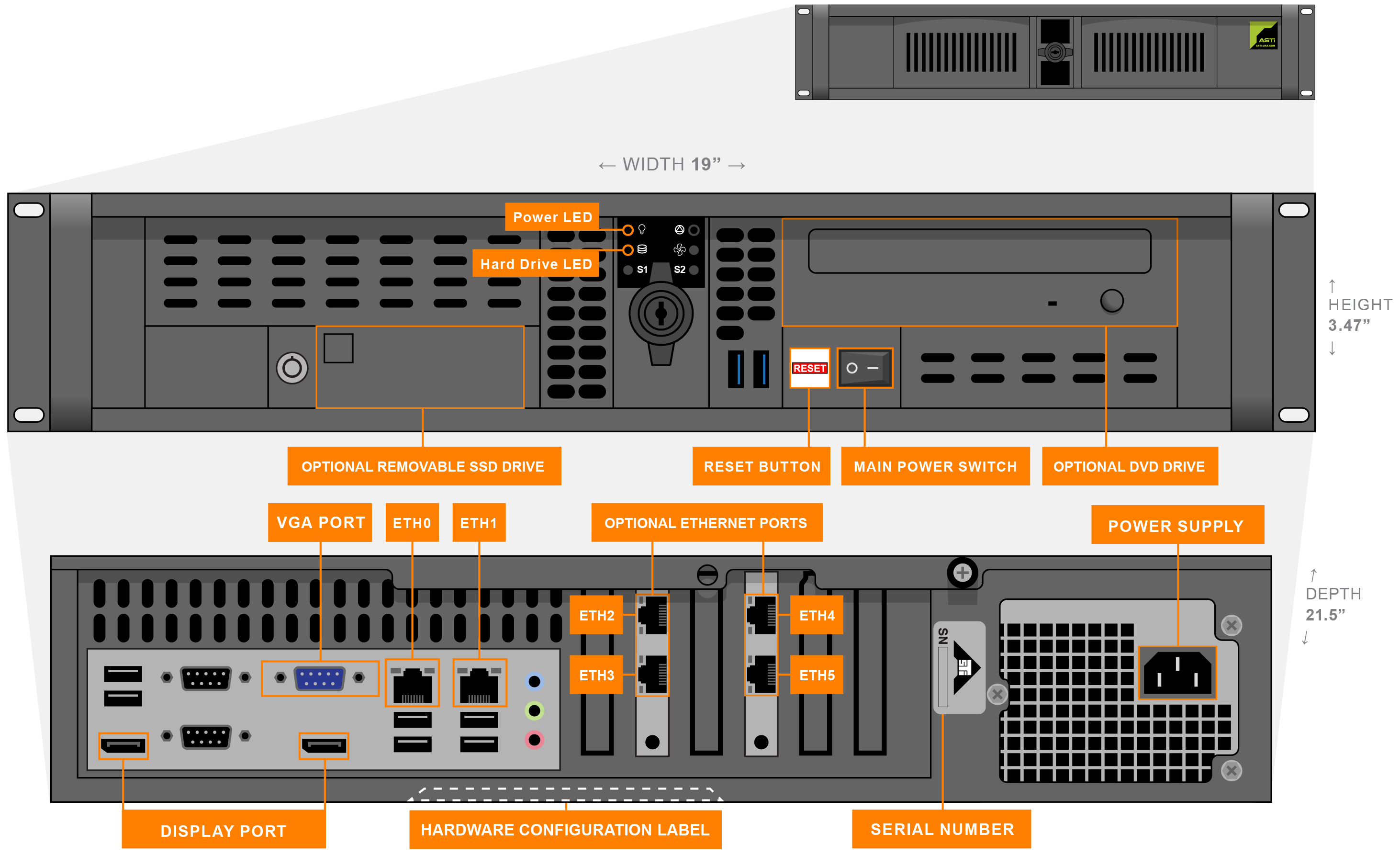

Here's a technical drawing of ASTI-SRV-XX with HW-1XXXXX-XXX and ASTI-SRV-HP-XX with HW-2XXXXX-XXX chassis configurations:

Go to ASTI-SRV-XX with HW-1 and ASTI-SRV-HP-XX with HW-2 Chassis to view a PDF.

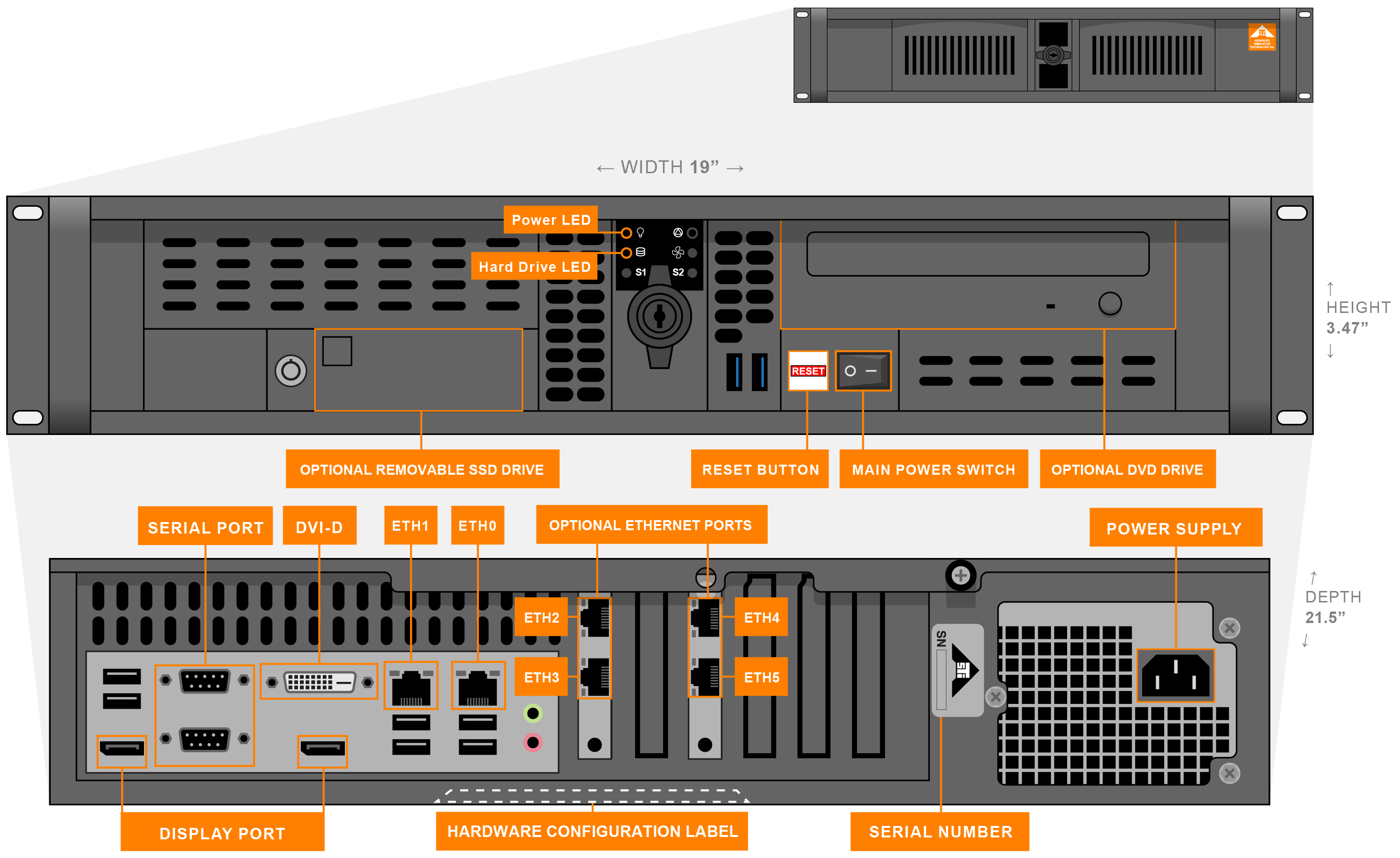

Here's a technical drawing of the ASTI-SRV-XX with HW-0XXXXX-XXX and VS-SRV with VSH-XXXXX-XX chassis configurations:

Go to ASTI-SRV-XX with HW-0 and VS-SRV with VSH Chassis to view a PDF.

Voisus Server Specifications

Note: The following specifications apply to the current generation that ASTi is shipping. Contact ASTi for details about other configurations.

Mean Time Between Failure (MTBF)

The following table displays MTBF rates for the Voisus ASTI-SRV-XX with HW-1XXXXX-XXX and ASTI-SRV-HP-XX with HW-2XXXXX-XXX chassis configurations:

Server	67,523 hours
SSD	1,500,000 hours

The following table displays MTBF rates for the Voisus ASTI-SRV-XX with HW-0XXXXX-XXX and VS-SRV with VSH-XXXXX-XX chassis configurations:

Server	100,000 hours
Solid-State Drive (SSD)	2,000,000 hours

Chassis-Dependent Specifications

Chassis	Configuration Number
2U	ASTI-SRV-HP-XX with HW-2	Dimensions: 22.75" D x 17" W x 3.5" H Weight: 31 lbs. Power Requirements: 100–240 VAC 47–67 Hz 8–4 A
2U	ASTI-SRV-XX with HW-1	Dimensions: 22.75" D x 17" W x 3.5" H Weight: 31 lbs. Power Requirements: 100–240 VAC 47–67 Hz 8–4 A
2U	ASTI-SRV-XX with HW-0, VS-SRV with VSH-XXXXX-8X	Dimensions: 22.75" D x 17" W x 3.5" H Weight: 31 lbs. Power Requirements: 100–240 VAC 47–67 Hz 8–4 A
1U	VS-SRV with VSH-XXXXX-8X	Dimensions: 25.5" D x 19" W x 1.75" H Weight: 24.5 lbs. Power Requirements: 100–240 VAC 47–67 Hz 8–4 A
Tower	VS-SRV with VSH-XXXXX-4X	Dimensions: 16.5" D x 16.6" W x 7.8" H Weight: 20 lbs. Power Requirements: 100–240 VAC 47–67 Hz 8–4 A
MicroServer	VS-SRV with VSH-XXXXX-5X	Dimensions: 4.6" D x 4.4" W x 1.5" H Weight: 1 lb., 3 oz. Power Requirements: 100–240 VAC 50–60 Hz 1.5 A

Memory Volatility

The following memory volatility data applies to the Voisus ASTI-SRV-XX with HW-0XXXXX-XXX and VS-SRV with VSH-XXXXX-XX chassis configurations:

Volatile

Type	Size	User-Modifiable	Function	Process to Clear
SRAM	8 MB	No	CPU cache	Remove power Count to 30 Restore power
DRAM	8 GB	Yes	Temporary memory	Remove power Count to 30 Restore power
SRAM	512 MB to 2 GB	No	SDD cache	Remove power Count to 30 Restore power
SRAM	2 MB	No	CD/DVD cache	Remove power Count to 30 Restore power

Non-Volatile

Type	Size	User-Modifiable	Function	Process to Clear
Flash	64 MB	Yes	BIOS settings	Remove power Remove CMOS battery Count to 30 Replace CMOS battery Restore power
Flash	2 MB	Yes	Ethernet card settings & firmware	None
EEPROM	32 KB	Yes	CD/DVD-ROM firmware	None
EEPROM	16 MB	Yes	HDD firmware	None

Media

Type	Size	User-Modifiable	Function	Process to Clear
Removable	Variable	Yes	OS and program storage	Format

The following memory volatility data applies to the Voisus ASTI-SRV-XX with HW-1XXXXX-XXX and ASTI-SRV-HP-XX with HW-2XXXXX-XXX chassis configurations:

Volatile

Type	Size	User-Modifiable	Function	Process to Clear
SRAM	12–20 MB	No	CPU cache	Remove power Count to 30 Restore power
DRAM	16–32 GB	Yes	Temporary memory	Remove power Count to 30 Restore power
DRAM	512 MB to 2 GB	No	SDD cache	Remove power Count to 30 Restore power
SRAM	0.5 MB	No	DVD cache	Remove power Count to 30 Restore power

Non-Volatile

Type	Size	User-Modifiable	Function	Process to Clear
Flash	32 MB	Yes	System BIOS	None
Battery-backed SRAM	256 bytes	Yes	CMOS settings	Remove power Remove CMOS battery Count to 30 Replace CMOS battery Restore power
Flash	128 KB	Yes	Onboard Ethernet card settings and firmware	None
Flash	128 KB	Yes	Offboard Ethernet card settings and firmware	None
Flash	128 KB	Yes	USB3 hub configuration	None
Flash	7 KB	Yes	TPM	None

Media

Type	Size	User-Modifiable	Function	Process to Clear
Removable SSD	Variable	Yes	OS and program storage	Format

Compatible Devices

Audio Distribution

ACE-RIU, ACU2, AI-S, AI-Delta, AI-Bravo, Ashly™ Amp

Warranty

See ASTi's Standard Terms and Conditions.
